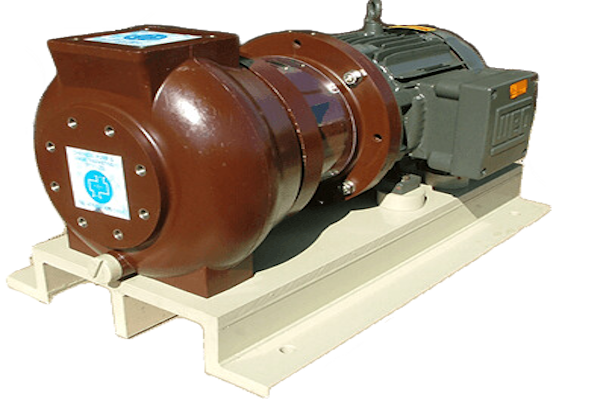

OVMNCH51P-855JKCH5 Pump are used worldwide in hazardous atmospheres
within the petroleum, refinery, chemical, utility and pharmaceutical
industries. These durable, leak-free diaphragm gaseous sampling pumps
are also an ideal choice for oil plant customers and can be custom
designed and built for your specific application.
OVMNCH51P-855JKCH5 Pump can provide Maximum drive rating: 1.5KW(2HP) and Maximum caliber: 45mm(1 1/2inch).
Main applications: Oil & Gas
Driver: Electric motor
Power Spec: 380/415V 3phase;
Max.permissible fluid temperature:50°C(122°F)
Type of connection: Barb
Installation position: Horizontal
Casing parts material: Cast iron
Shaft seal type: Oil seal
Limited vacuum: 0.067pa(6.7×10-7bar)
Maximum drive rating: 1.5KW(2HP)
Maximum caliber: 45mm(1 1/2inch)
Flow rate range: 0.25-15L/s(0.53-31.8CFM)
