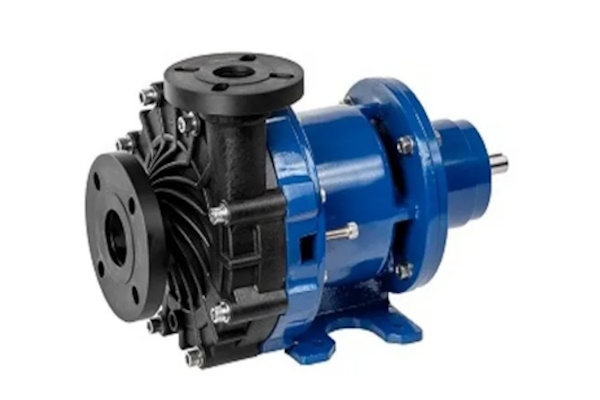

OVMNCY01N-445JKCH0 Pump
OVMNCY01N-445JKCH0 Pump housing can be equipped with various hardened screw combinations.
Reverse flow direction as well as flexible port positions are possible
on individual customer demand. This allows the NOVATWIN range to adapt
to different applications, media and operating conditions.
Operating Frequency: | 50 Hz |
Head [H] up to: | 38 m (125 ft) |
Motor Power [P] up to: | 15 kW (20 hp) |
Viscosity up to: | 150 mPas (cP) |
Suction Lift: | 8 m (26 ft) with priming chamber* |
Maximum Working Pressure: | 10 bar (145 psi) |
Maximum Specific Gravity [SG]: | 1.8 - 3 |
Minimum Continuous Flow [MCF]: | 2.5 m3 /hr (11 US gpm) |
Suction & Delivery Connection: | ANSI B16.5, DIN2501, BS4504, BSP, NPT |
Capacity [Q] up to: | 40 m3 /hr (176 US gpm) |
